1100 Cross Piece Grille

An elegant and practical system that is seismically compliant and simple to install and remove.

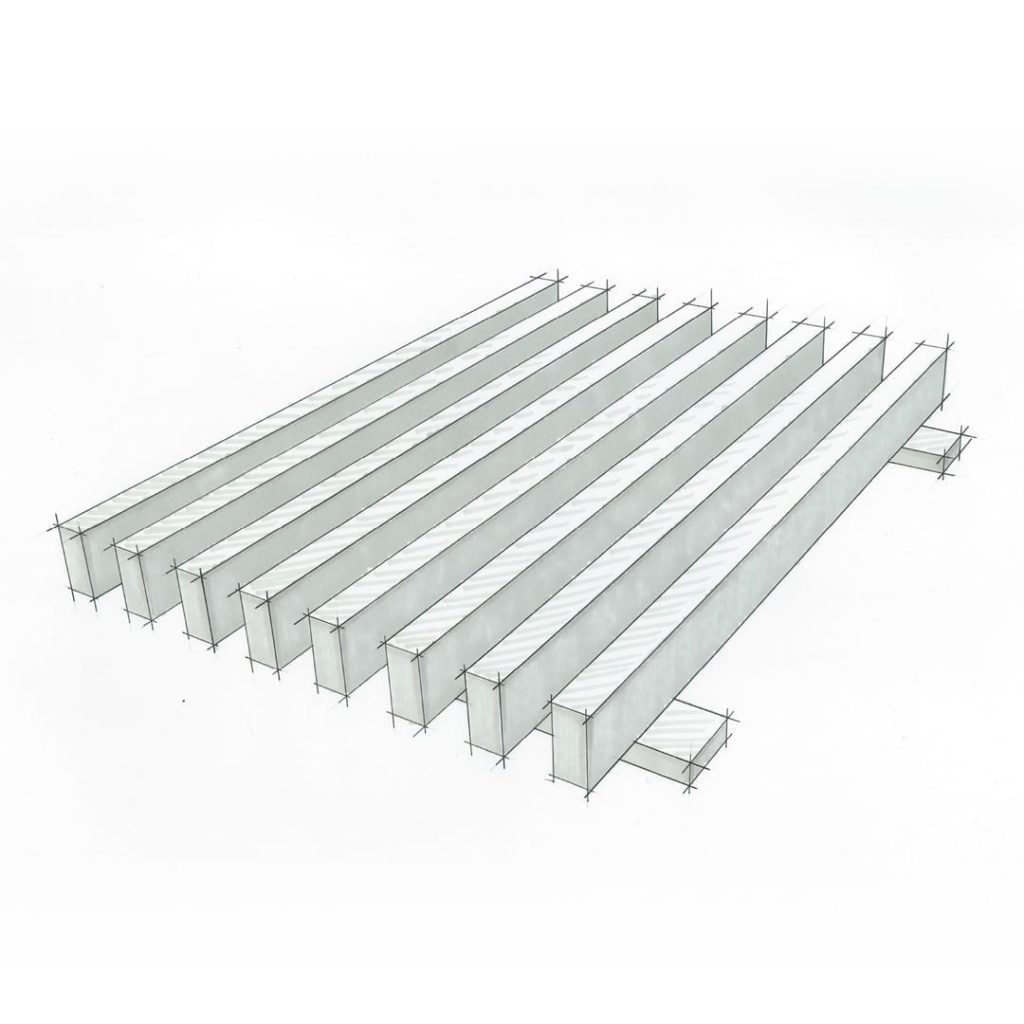

The 9Wood Cross Piece Grille style wood ceiling offers a design where the individual wood member is deeper than it is wide. The standard panel width is 12″ or 24″, and panel lengths are 2′ to 12′ .

The Cross Piece Grille uses a pre-assembled panel fabrication process. This product can be installed throughout the country and is the preferred design in areas requiring seismic compliance. Full panel access is available by means of removing attachment screws hidden in reveals. Repeated removal requires threaded 9Wood T-Bolt™ attachment as opposed to screws.

1100 Cross Piece Grille - Solid wood Pack

1100 Cross Piece Grille - Veneer Pack

Download Documents

DATA SHEET

Download Now View Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Cross Piece Grilles must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Cross Piece Grille can enhance acoustics via sound absorbing material placed over open reveals within the T-Bar grid. Insulation is typically provided locally.

Fire Rating

Individual members and components can be coated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Cross Piece Grilles may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Cross Piece Grille permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diff users must be independently supported.

Seismic

Cross Piece Grilles provide seismic code compliance by means of mechanical direct screw attachment to T-Bar via the cross-piece backer. Please consult local code or a licensed engineer for any additional requirements.

Species & Finishes

9Wood offers both domestic and imported species for the Cross Piece Grille. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Cross Piece Grilles are directly attached to 15/16″ heavy duty T-Bar main runners. Main runners are typically 2′ on center.

System Weight

Cross Piece Grilles typically weigh 2-4 pounds per square foot, depending on members per linear foot and species.
