6600 Monolithic Cube – Wood Grid

Ideal for clouds, this all-wood cube delivers the commanding look of angles and depth without a T-Bar.

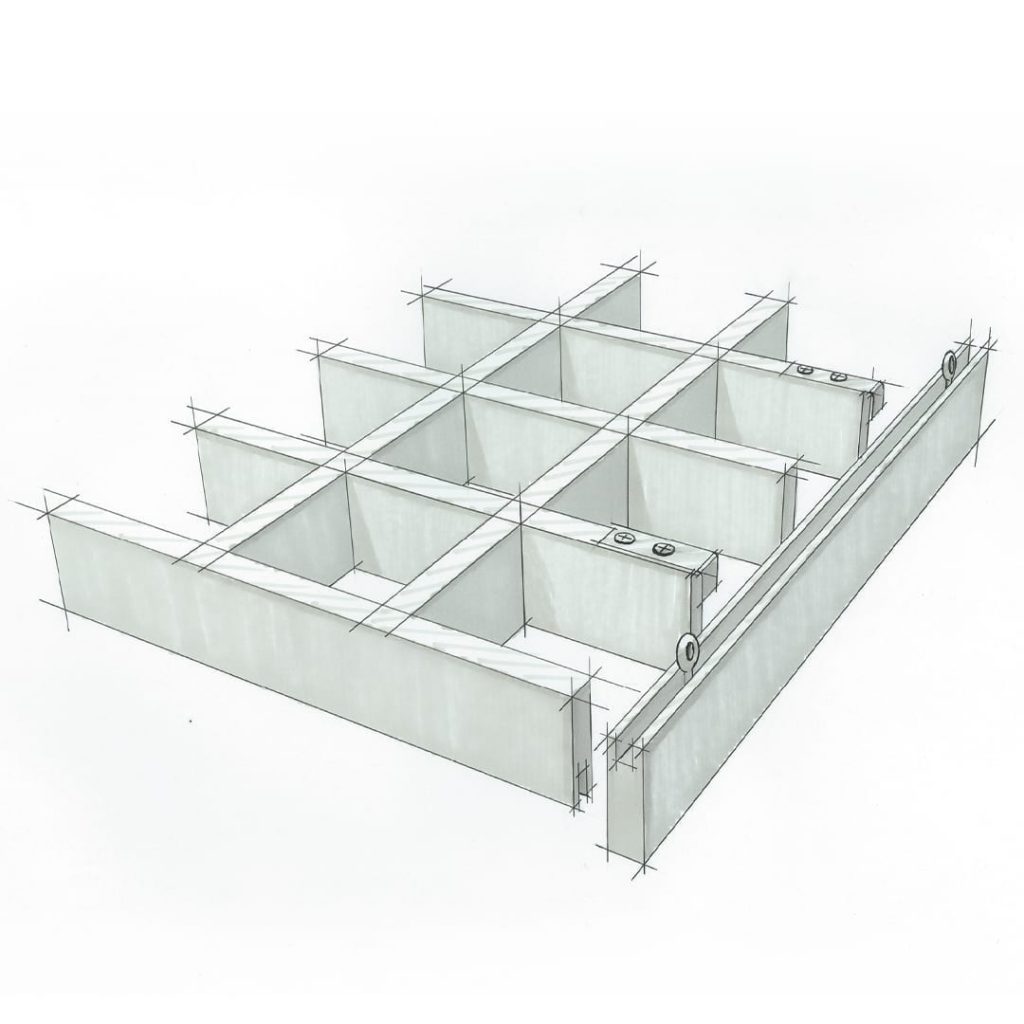

Designed with thin blades in mind, the 9Wood Monolithic Cube – Wood Grid style wood ceiling offers a classic cell wood ceiling in a monolithic, continuous ceiling field. The 6600 Monolithic Cube – Wood Grid style is suspended from matching wood suspension members. When the cube infill panel is installed, all members are flush A.F.F., creating a monolithic appearance. Without the size limitation of commercial T-Bar grid, thin solid wood blades can be used.

The Monolithic Cube – Wood Grid is used in ceilings where a large percent opening is desired. The vertical member orientation creates a cut-off angle, which highlights the beauty of wood while hiding the plenum. Panels are installed using 9Wood Hook Clips™ and wood grid, which is suspended using eye screws. Access is achieved by lift, shift and removal. In seismic areas, safety tie-off wires may be required.

Download Documents

DATA SHEET

Download Now View Now

GUIDE SPEC

Download Now

CAD DETAILS

View All

ACOUSTIC TESTS

View All

SPECIFICATIONS
& PERFORMANCE

BELOW

SPECIES &
FINISHES

VIEW

REQUEST
SAMPLES

SUBMIT

FULL
LIBRARY

VISIT

Acclimatization

Monolithic Cubes must be cared for in a controlled interior environment (RH 25%-55% max; temp. 60°-80°) and installed only after reaching equilibrium moisture content. Should the building fall outside these limits, consult 9Wood for our Wood Ceiling Acclimatization for Professionals handbook.

Acoustics

The Monolithic Cube – Wood Grid can enhance acoustics via sound absorbing material placed over open reveals within the T-Bar grid. Insulation is typically provided locally.

Fire Rating

Individual members and components can be treated with Class I (A) Fire Retardant chemicals (solid wood use FR coatings, veneered particleboard use FR formulas). Particular species or styles have not been tested.

LEED

Monolithic Cubes may qualify toward MR-3, MR-4.1/4.2, MR-5.1/5.2, MR-6, MR-7, IEQ-4.2 or IEQ-4.4. As all products are custom-fabricated, LEED credit opportunities are project by project. Please contact 9Wood for specifics.

MEP

The Monolithic Cube – Wood Grid permits MEP penetrations in the ceiling’s surface. Cut panels may require supplemental reinforcement. Fixtures and diffusers must be independently supported.

Seismic

Monolithic Cubes typically require safety-wire tie-offs or a lock-down screw. Please consult local code or a licensed engineer for any additional requirements.

Species & Finishes

9Wood offers both domestic and imported species for the Monolithic Cube. Clear, matte sheen finish is standard; custom stain matches are available. For additional information see our species article.

Suspension

Monolithic Cube – Wood Grid ceilings are suspended using eye screws and standard wire suspension methods. Suspension wires are typically 2′ on center.

System Weight

Monolithic Cubes typically weigh 2-4 pounds per square foot, depending on members per linear foot and species.
